PIONEERING INNOVATION
With five decades of AHU expertise, we lead in sustainable, advanced HVAC solutions, offering the first R-32 compatible systems.
ONE-STOP CONTACT
Complete solutions for heating, cooling, ventilation, and digital control.
ENERGY EFFICIENCY
Highly efficient, energy-saving operations, supporting your building’s decarbonisation goals.

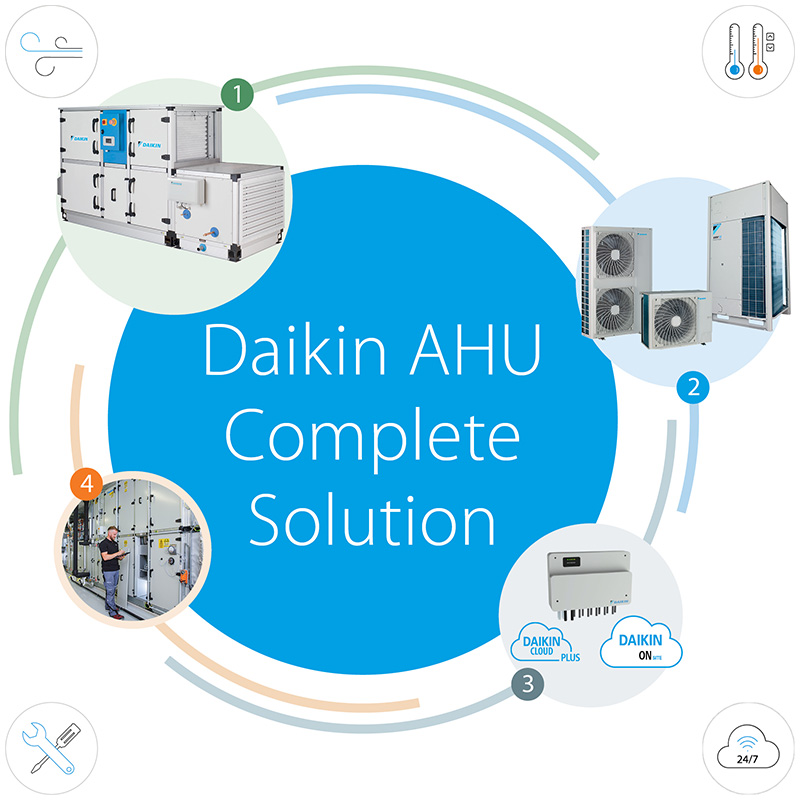

How Daikin’s complete HVAC solution helps you achieve peak efficiency?
- Top-tier solutions: Achieve high energy efficiency and lower CO2 footprint across all segments and every step of your HVAC system.
- Seamless integration and communication: Ensure every component works in harmony; integrating AHU with a heat recovery system is even more effective.
- One-stop contact: Get everything you need from design support to spare parts and service, reducing time and effort lost in contacting multiple suppliers.
- Easier and faster commissioning: Enjoy reliable operation with pre-programmed, configured, and factory-tested controls, not only enhance the operational reliability but also save time and reduce manpower costs during installation, commissioning and also maintainance.
Ventilation:
Achieve highest indoor air quality with most efficient heat recovery Daikin AHUs, featuring heating, cooling & humidification to deliver the precise comfort environment.
Service:
From commissioning, spare parts to maintenance, Daikin’s service network ensures quick issue resolution and reliable performance, keeping your AHU system running smoothly.
Condensing unit:
Seamless installation and superior efficiency when connecting Daikin condensing units (ERA / VRV) with Daikin AHUs using our unique X controls.
Control:
Save time and costs with Daikin’s plug-and-play control systems. Easy on-site assembly and cloud-based solutions ensure you’re in control, no matter where you are.
Centralised and decentralised ventilation
Daikin offers centralised and decentralised ventilation solutions to meet diverse building needs. Centralised systems provide efficient air distribution from a single point, while decentralised systems offer flexible, easy-to-install units for specific areas. Both ensure optimal indoor air quality and energy efficiency.
Centralised Ventilation
Decentralised Ventilation
- Compact Series
- Modular Series
- Professional Series
- Controls
Compact L
Ceiling suspended AHU
- Airflow : Up to 3.450 m3/h
- Available in 6 sizes
- Easy to install with DX/water/Electric coil
- Compatible with R410a & R32 refrigerant DX coils
- Quiet operation
- Highest level of comfort
- False ceiling application (Zero footprint)
- Counter flow HX with upto 92% efficiency
Compact T
Floor mounted top discharge AHU
- Airflow : Up to 4.200 m3/h
- Available in 6 sizes
- Easy to install with DX/water/Electric coil
- Compatible with R410a & R32 refrigerant DX coils
- Quiet operation
- Highest level of comfort
- Smallest footprint
- Counter flow HX with upto 92% efficiency
- Easy to install in any retrofit buildings

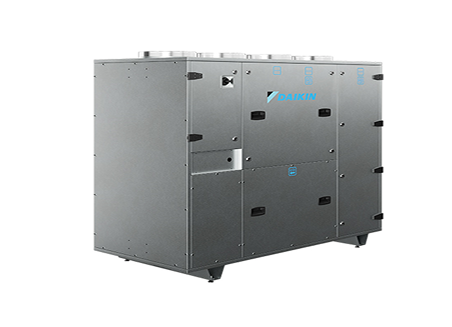

Modular R
Heat recover wheel type Air Handling unit
- Airflow: Up to 25.000 m³/h
- Available in 10 sizes
- Easy Connection: Compatible with DX and water coils
- Installation: Suitable for both indoor and outdoor settings
- Control Options: Available with or without integrated controls
- Energy Efficiency: Very high energy-efficient AHUs
- Heat Exchanger: Rotary wheel heat exchanger (HX)
- Factory Configured: Pre-programmed and factory-tested controls for easy setup
Modular P
Plate type heat recover Air Handling unit
- Airflow: Up to 20.000 m³/h
- Available in 10 sizes
- Easy Connection: Compatible with DX and water coils
- Installation: Suitable for both indoor and outdoor settings
- Control Options: Available with or without integrated controls
- Energy Efficiency: Very high energy-efficient AHUs
- Heat Exchanger: Counter flow plate heat exchanger (HX)
- Factory Configured: Pre-programmed and factory-tested controls for easy setup
Professional
Customised AHU to meet all your specific needs
- Airflow : Up to 144.000 m3/h
- Possible to match exact required dimensions
- Available with & Without controls
- Precise temperature control option
- Highest level of comfort with connection to Chiller / Heat pumps / DX condensing units
- Hygienic, ATEX, RLT certification possible
- Factory fitted & Configured control availability
Pro W
Datacenter solutions
- Direct cooling for large duty applications
- High effficiency with EC motors
- Available capacity from 175 kW - 700 kW
- Compact units with lowest footprint
- Side & top coil configurations
Daikin Digital Control
Plug and play control system
- Maximum flexibility in selecting up to 310 I/O (inputs/outputs)
- Integrate both low and high voltage systems with support up to 75 kW for versatile applications.
- User friendly control interface and communication with Daikin Digital controller
- Free cooling/free heating management
- VRV direct expansion & Chilled water systems management
- All components are internally wired
- Faster connection between sections
- Programming schedule
- Indoor Air Quality (IAQ) controlled by CO2 Probe
- Supervision and Control management local, remote options (Modbus, Bacnet)

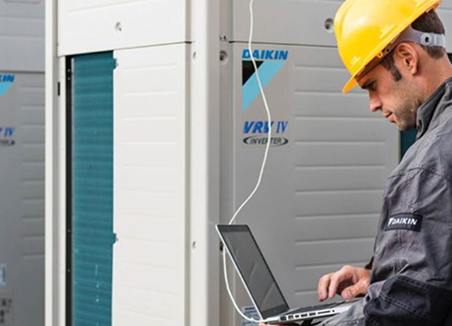

Daikin on Site
Remote monitoring and control for chiller plants and air handling units
- Monitor and control your chiller or AHU anytime, anywhere
- Remote diagnostic support by Daikin experts for optimal system performance and longevity
- Access operational data for enhanced control and reliability
- High security for data privacy, storage, and transport.
- Optimize operation and maintenance costs
Intelligent Touch Manager (ITM)
Manage your entire building with one interface
- Ideal for medium to large commercial applications, Possible to control multiple AHUs & VRVs including indoor units with single iTM.
- Seamless integration with VRV, AHU, and third-party equipment, allowing you to control climate, lighting, and alarms from a single interface
- Optimize your energy use by monitoring consumption and detect energy waste.
- Easy-to-use analytics, saving up to 15%.
- Modular design: allowing you to customize the system to fit any building size and needs.
- 24/7 remote monitoring by connecting with Daikin i-Net for continuous system performance.
Certification
Acknowledging Skill and Commitment
Daikin Transport Refrigeration offers tailored solutions for diverse applications and vehicle types, minimising total cost of ownership with reliable units built to rigorous quality standards.
Our comprehensive portfolio integrates world-class technology to ensure quality and safety throughout the cold chain, from production to retail and transit. With energy-efficient, low-GWP refrigerants, we safeguard perishables while reducing environmental impact, advancing towards electrification to further enhance sustainability in the Transport Refrigeration industry.
Check ongoing validity of certificate at www.eurovent-certification.com
Behind the scenes: crafting excellence
Step inside our Italian factory and and explore the journey behind crafting Daikin AHU. Witness our precision engineering and expert craftsmanship that ensure every Daikin AHU meets the highest standards of quality and innovation.
Case studies
Discover our services and solutions with Daikin360
From expert installation to maintenance and repair, our team ensures your HVAC systems run efficiently all year long. Trust Daikin for reliable solutions that keep your home or business comfortable, while saving on energy costs.
Daikin's remote monitoring and control for chiller plants and air handling units
Using Daikin's remote monitoring results in optimum use and costs over the system's entire lifetime while increasing efficiency and reliability.
Achieve optimal air quality
Ensure a fresh, healthy, and comfortable indoor environment with Daikin’s advanced ventilation solutions. From energy-efficient heat recovery systems to large-scale air handling units, our systems seamlessly integrate with your HVAC setup to deliver optimal air quality.
Healthy Air In Modern Building Designs
Air Ventilation Is Crucial For Your Building
The rise in energy efficient building designs is increasing the need for ventilation systems. Energy efficient buildings require more insulation to reduce heating and cooling loss. This means that the air inside of your building lingers longer and becomes stale. The stale air also puts your building at a greater risk for allergies, residual odours, condensation, mould and more.
Intro Bergheim shopping centre
Daikin implemented a customised and energy-efficient HVAC Total Solutions for, ensuring optimal climate comfort and energy efficiency across 22 retail units in a new shopping centre near Cologne.
Garitage Park
Learn about how Daikin implemented an HVAC solution, ensuring the best possible climate while avoiding the use of gas on a site the size of over 23 football pitches.
WHY CHOOSE DAIKIN AIR HANDLING UNITS
VENTILATION SYSTEMS FOR HEALTHIER INDOOR ENVIRONMENTS
- Energy Efficiency
- Flexible Solutions
- Comfort
ENERGY-EFFICIENCY
ENHANCED ENERGY EFFICIENCY AND REDUCED CARBON FOOTPRINT
Our Daikin air handling units are engineered with leading technologies and parts to increase their energy efficiency and reduce your total cost of ownership and carbon footprint.
- Heat recovery technology recovers up to 90% of the heat
- Premium efficiency motor reduces power consumption
- Highly efficient fan increases efficiency when compared to standard fans
- Efficient control logic allows you to manage your building and energy consumption
FLEXIBLE SOLUTIONS
CHOOSE FROM STANDARD CLASSES OR CUSTOMIZE TO FIT YOUR NEEDS
Select an air handling unit from our range of standard classes or customize a premium solution to suit your building and needs. At no extra cost, you can customize the size of your unit down to the centimeters so that it fits perfectly in your available building space.
COMFORT
ENHANCING COMFORT AND HEALTH WITH VENTILATION SYSTEMS
Ventilation systems bring fresh outdoor air indoors, remove stale air and balance the humidity levels. These actions are crucial for maintaining a comfortable and healthy environment inside your building.
DAIKIN FRESH AIR PACKAGE
SEAMLESS INTEGRATION FOR TOTAL BUILDING SOLUTIONS
Daikin ventilation systems can be integrated into a total solution for your entire building. With our unique DX Connection, you can connect your air handling unit to any Daikin VRV or ERQ inverter condensing unit. The integrated expansion valve and control box make this a true plug-and-play solution. With no extra configurations needed and no additional design work required by the installer, you can select your ideal settings as you would with any other ventilation device.
AIR HANDLING UNIT QUICK SELECTION TOOL
VISUALIZE YOUR IDEAL AIR HANDLING UNIT SOLUTION
Take advantage of our air handling unit selection software to visualise your own customised air handling unit solution that suits your needs and location.
- Saves you time by drastically reducing the selection time with a new software interface
- Pre-uploaded parametres available within the Wizard make it a very competitive solution
- Intelligent software core makes high quality selections

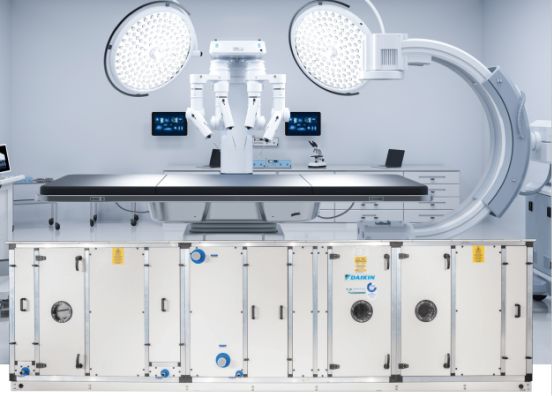

Hygienic Air Handling Unit
D-AHU Hygienic Version of Air Handling Units are the synthesis of more than 50 Years of Daikin European AHU Manufacturing experience. Air Handling Units with stringent hygienic features are demanded in Health Care, Pharmaceuticals, Semiconductors and Food & Beverage industries.
Ventilation
Ventilation is the replacement of indoor air with fresh outdoor air in order to dilute and remove air pollutants (substances that can be harmful to humans) from inside the building.
TIPS ON OFFICE & STORE VENTILATION
CUSTOMIZING VENTIALTION SOLUTIONS BASED ON BUILDING TENENCY AND MANAGEMENT

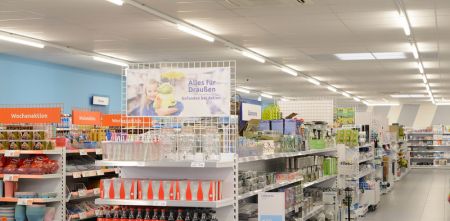

Small Stores
Ventilation equipment installed in small stores is mostly operated by their employees with a remote controller.
Small to Medium-sized Offices
Offices located in small and medium-sized buildings with 10 floors or less
Large Offices & Buildings
Efficient Ventilation Strategies for High-rise Structures and Large Complexes
Supporting your success, no matter your role in the project
Start your ventilation project with the Daikin selection tool
Drastically reduce selection time with our user-friendly air handling unit selection software interface, ASTRA, to visualise your customised AHU solution that suits your needs and location.
- Intelligent software: The intelligent core ensures high-quality selections tailored to your specific requirements.
- Pre-uploaded parameters: Competitive solutions available within the Wizard, instantly providing a 3D result ready for customisation. Modify your unit to meet your needs, then generate and download technical reports, price lists, and fan curve charts in various formats.
Sustainable HVAC solutions: R-32 compatible AHUs
Daikin, the leader in innovative HVAC solutions, introduces the R-32 compatible AHU for Compact series L & T, Modular series R & P and Professional series. As the first in the market to offer full R-32 compatibility across outdoor units (VRV / ERA), AHUs, and controls, Daikin provides a comprehensive HVAC solution that meets your ventilation and decarbonisation needs.
Enhanced environmental sustainability
Support your ventilation needs with low GWP R-32 refrigerant, meeting decarbonisation targets and reducing CO2 emissions by up to 26%*.
*over 10 years of operation compared to R-410a systems
Higher efficiency
Up to 87% heat recovery efficiency and with factory-installed control box with unique X-controls, ensuring smooth and efficient system operation.
Best customer comfort
Precise temperature control reduces the risk of sudden temperature changes, ensuring stable comfort and smooth VRV operation.
Faster ROI
A holistic solution covering heating, ventilation, air conditioning, and smart digital control, simplifying integration, boosting efficiency, and reducing operating expenses, leading to an ROI within 4.2 years only.
Ensured safety operation
Daikin Shîrudo Technology and factory-configured AHU control systems ensure safe and highly efficient operation between the direct expansion condensing unit and AHU.
